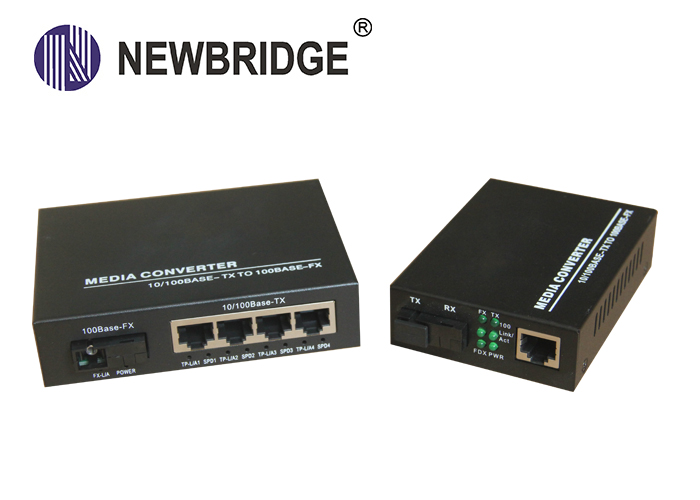

10 100M Media Converter,20KM single fiber single mode SC port with 4 port Switch

Name: 10 100M Media Converter20KM single fiber single mode SC port with 4 port Switch
Brand: NEWBRIDGE
Price: 1 USD

Wholesale 10 100M Media Converter,20KM single fiber single mode SC port with 4 port Switch from china suppliers

Brand Name : NEWBRIDGE

Model Number : ND-820SW-S20-4

Certification : FCC,CE

Place of Origin : SHENZHEN,CHINA

MOQ : 1pair

Price : Negotiation

Payment Terms : T/T , Western Union

Supply Ability : According to the different products , the monthly output is different

Delivery Time : According to the quantiy and stocking , 3-4 working days after payment

Packaging Details : packing can be done by customer's requested, usually used in carton

Power dissipation : ＜2.5V

Storage Temperature : -40°C~70°C

fiber distance : 20KM

power supply : DC/5V,AC/100-240V;

Operating Temperature : 0°C~50°C

Fiber Connector : SC standard, ST/FC optional

Contact Now

10 100M Media Converter,20KM single fiber single mode SC port with 4 RJ45 Switch

Feature

The suit of 10/100M IP Switch :
1X4 10/100M IP Switch +1*1 10/100M optical port(A) &
1X1 10/100M media converter(B)
1.10/100M single fiber single mode,1310TX/1550RX,SC port,0~20KM;
2.External power supply: DC/5V,AC/100-240V;

Specification

Standard	IEEE802.3 (10BASE-T),IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),IEEE802.3x (Flow Control),IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100 BASE-T	STP or UTP Category 5/5e/6 cable (Max. 100m)
100BASE-FX	50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km)
Conversion Mode / D elay Time	Store-and-Forward < 10us, straight-through<0.9us
Flow control	Full duplex-flow control, Half duplex-back pressure
RJ-45 Port	Auto-MDI/MDIX
Fiber Connector	SC standard, ST/FC optional
Wavelength	1310/1550nm
Input Voltage	DC 5V1A with External power adapter
Power Consumption	<2.5W
MTBF	50,000 hours
BER	<1/1000000000
MAC Address Table	1K
Buffer Size	1M
Operating Temperature	0°C~50°C
Storage Temperature	-40°C~70°C
Storage Humidity	5%~90% non-condescending

Connection Diagram

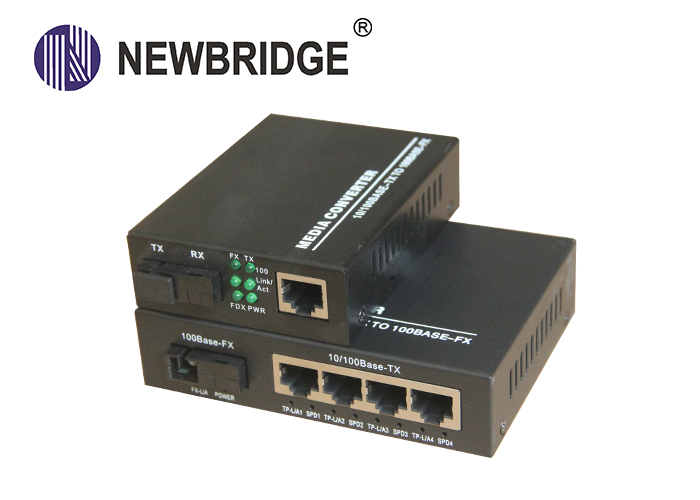

10 100M Media Converter,20KM single fiber single mode SC port with 4 port Switch

Order info

Part No

Description of product

Unit

ND-810SW-20B

ND-815SW-20A

1*10M/100M bps+1*10/100M-FX, Single mode,1550nm,0-20KM,SC

4*10M/100M bps+1*10/100M-FX, Single mode,1310nm,0-20KM,SC

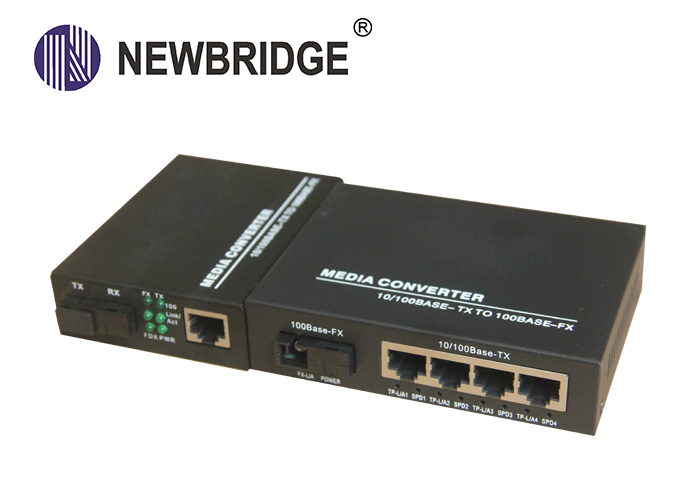

10 100M Media Converter,20KM single fiber single mode SC port with 4 port Switch

Product Tags:

single mode media converter

fiber optic media converter
